Geology and setting

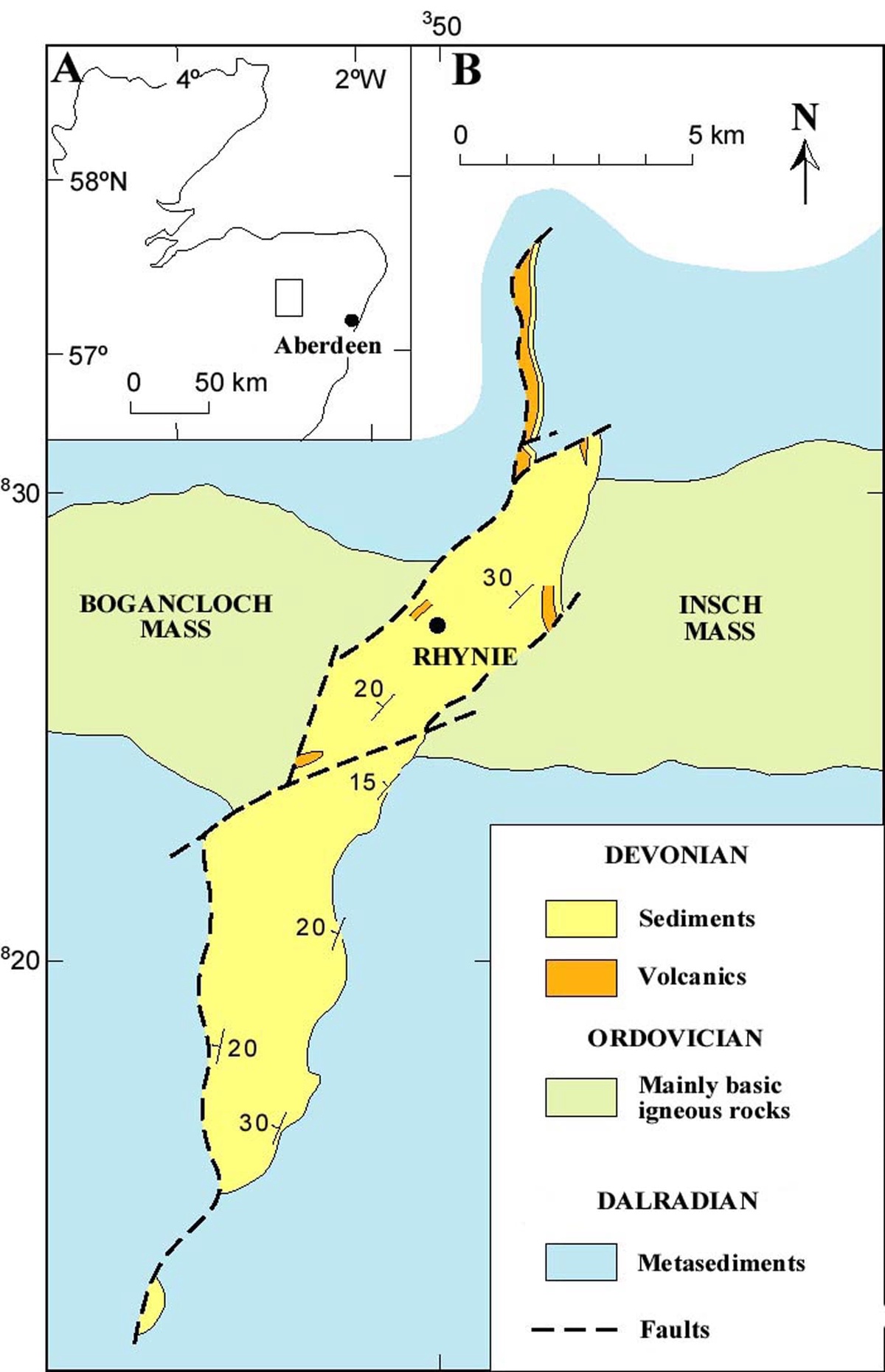

This lithostratigraphic unit comprises the lower part of the sequence of the basin fill and is laterally variable in character. In much of the basin the unit is dominated by coarse-grained clastic rocks , primarily locally derived sandstones and conglomerates. In the area of Rhynie itself much of the unit appears to comprise a significant thickness of tuffs with interbedded sandstones ( Rice et al. 2002 ). Some of the tuffs appear to represent direct air-fall deposits, but most appear to have been water-lain and were probably derived from eroding ash cones.

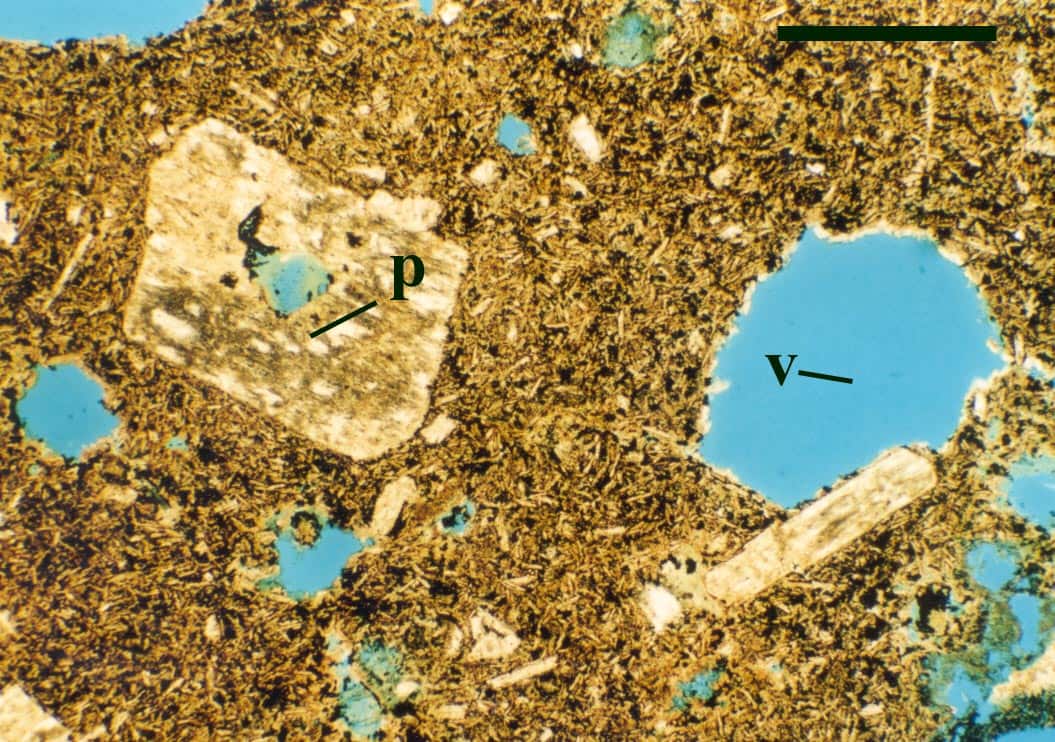

Concurrent volcanic activity is also recorded in the rocks of the Tillybrachty Sandstone Formation in the form of extrusive andesite lava flows. The andesites show many primary textures that were preserved at the time the lava cooled and solidified such as vesicles and phenocrysts , however, due to later passage of hot fluids through the lavas the original minerals that make up the rock have been highly altered (see inset left).

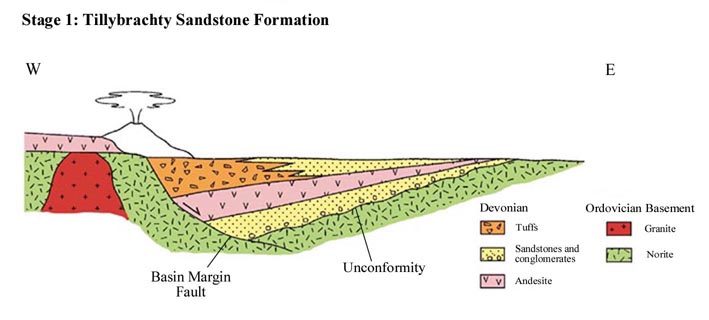

The sedimentary rocks of the Tillybrachty Sandstone Formation appear to represent localised deposition in an alluvial environment . The conglomerates and coarse-grained sandstones were probably initially deposited as alluvial fans at the basin margins with sediment being distributed further into the basin by sheet flood events. Localised volcanic activity is also evident by the presence of andesitic lava flows and tuffs.

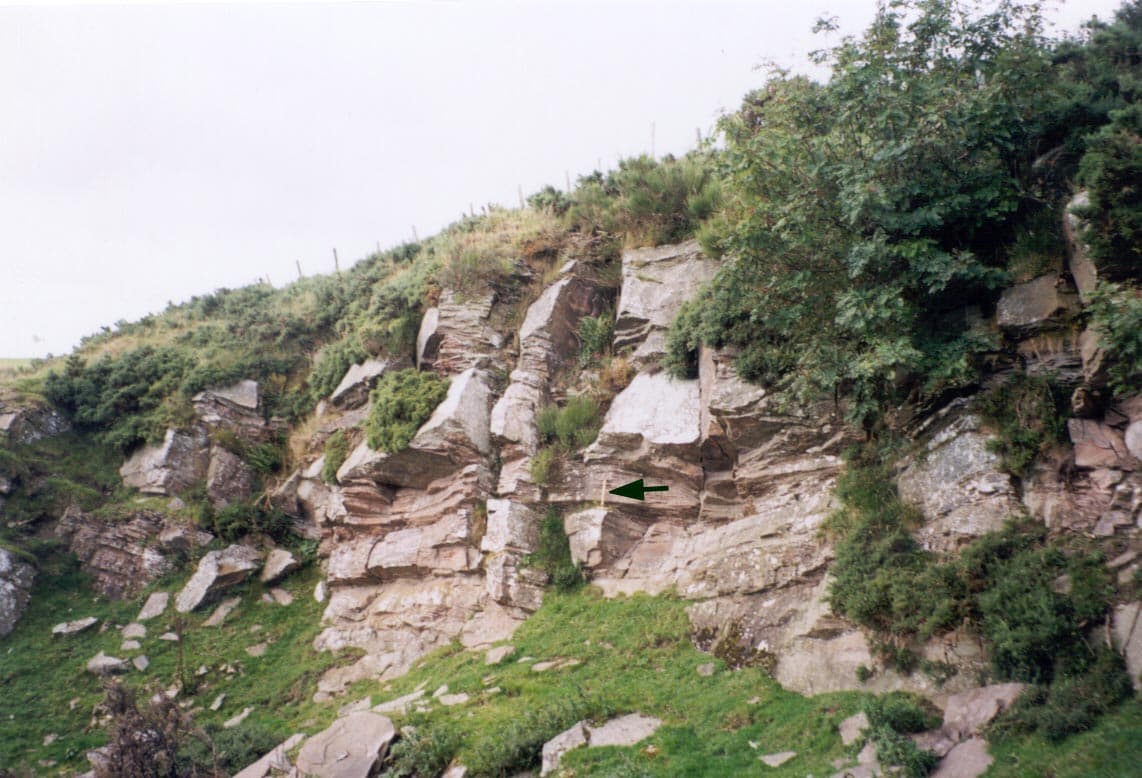

This lithostratigraphic unit succeeds the Tillybrachty Sandstone Formation. It occurs throughout much of the basin and is particularly distinctive in the south west of the area where it outcrops in the disused sandstone quarries on Quarry Hill (see inset below). This formation primarily comprises stacked, well bedded, current rippled, laminated and cross-stratified sandstones rich in feldspar grains. In this particular area these sandstone beds form large-scale channelised deposits commonly exhibiting erosive bases with mud rip-up clasts and are occasionally interbedded with scoured thin shale horizons.

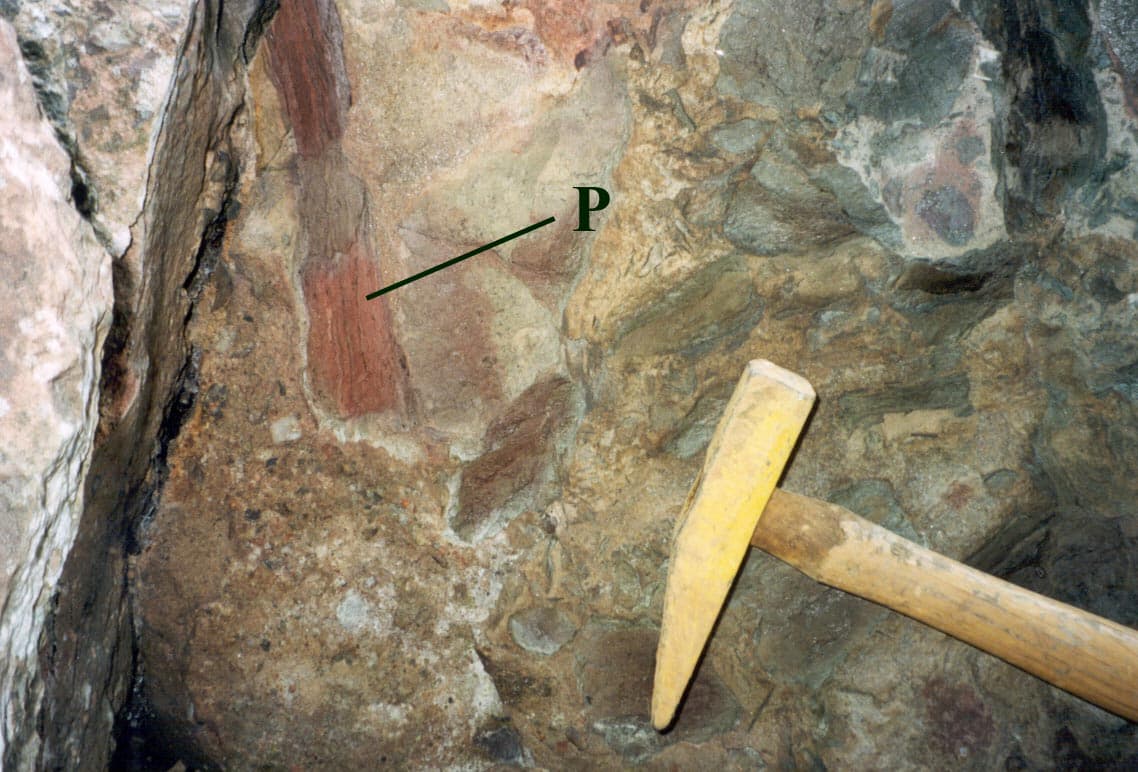

In the Quarry Hill area the sandstones locally yield casts of transported plant debris, some of which are particularly large (see inset below).

Of these plant remains, and perhaps one of the most enigmatic, may tentatively be assigned to the genus Prototaxites (belonging to an extinct group of Palaeozoic plants called the nematophytes ). When the area was actively being quarried in the late 19th and early 20th centuries, these plant fossils were occasionally found in the form of logs preserved as sandstone casts. One specimen, recorded by Newlands (1913) as "a plant fragment" and nearly 1.3 m in length, is now housed in the collection of the Department of Geology and Petroleum Geology, University of Aberdeen (see inset below).

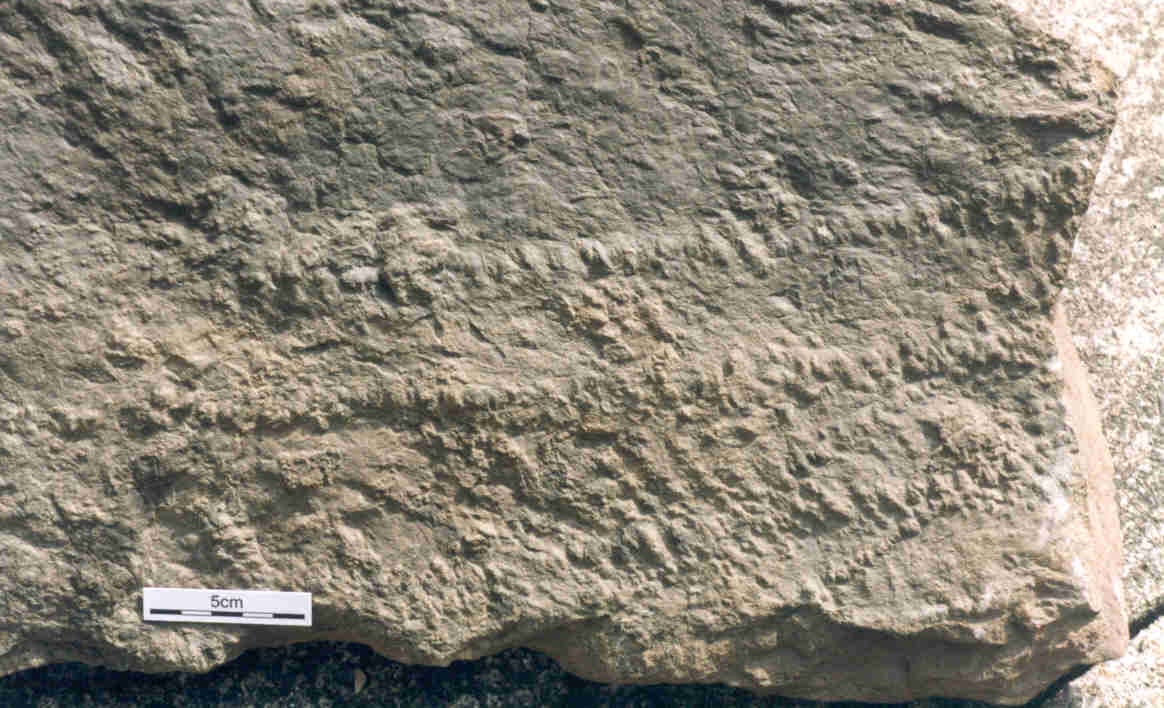

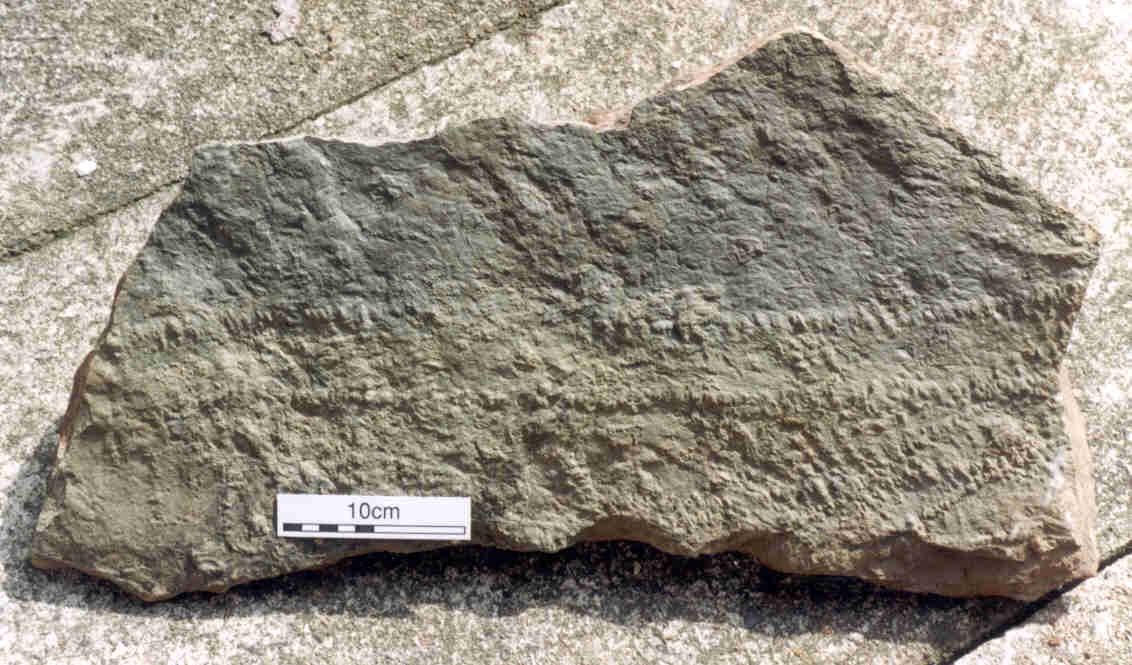

Trace fossils have also occasionally been found on bed surfaces including Diplichnites, a preserved trackway about 5cm wide, probably created by a large myriapodous arthropod (see inset below).

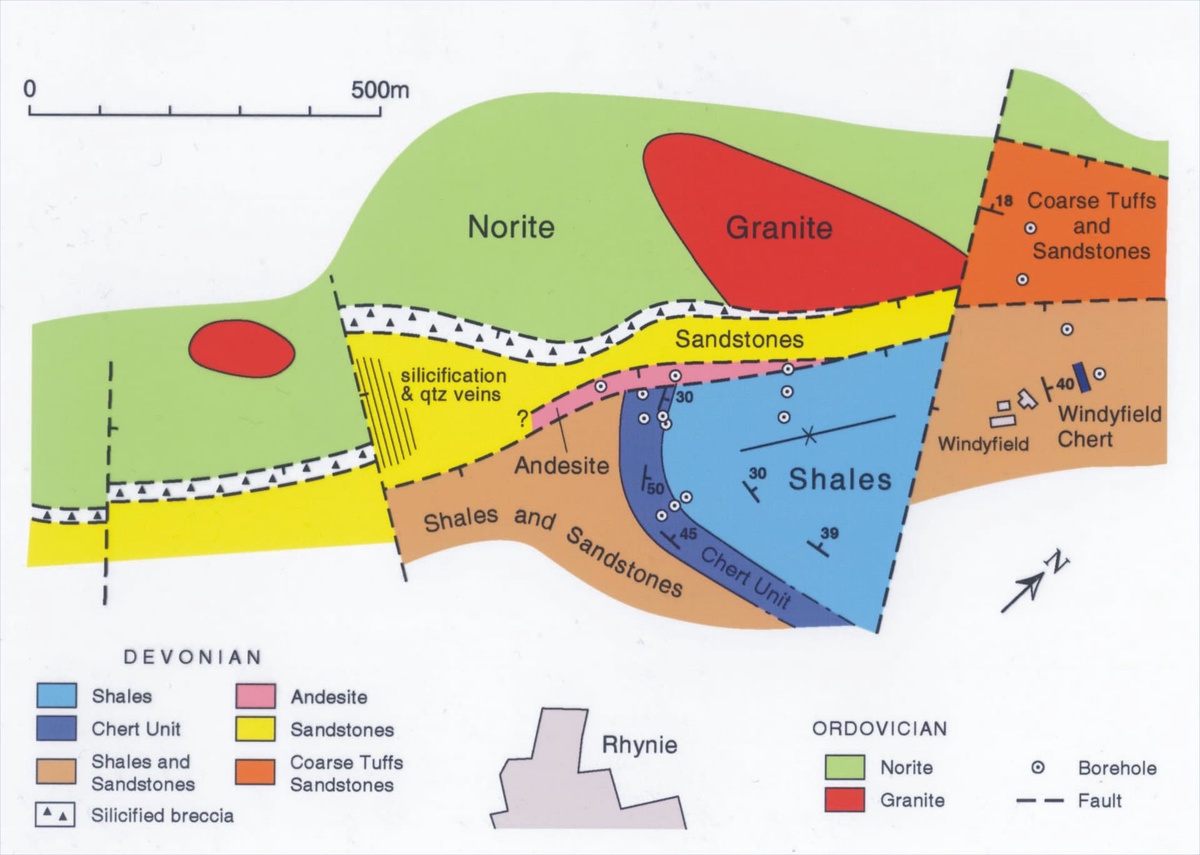

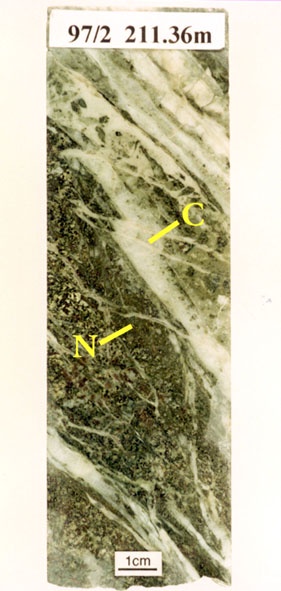

The "White Sandstones Unit" encountered in Borehole 97/2, north west of Rhynie village, is a 50m interval of hydrothermally altered white, laminated, rippled and cross-stratified sandstones with minor shale interbeds. It is thought to represent at least part of the formation in this area (see insets below). Locally the sandstones are heavily cemented by calcite. In this borehole its basal contact is with a hydrothermal breccia above the main fault zone and, with increasing shale content, passes upwards into the more mud-rich beds of the Dryden Flags Formation explained below.

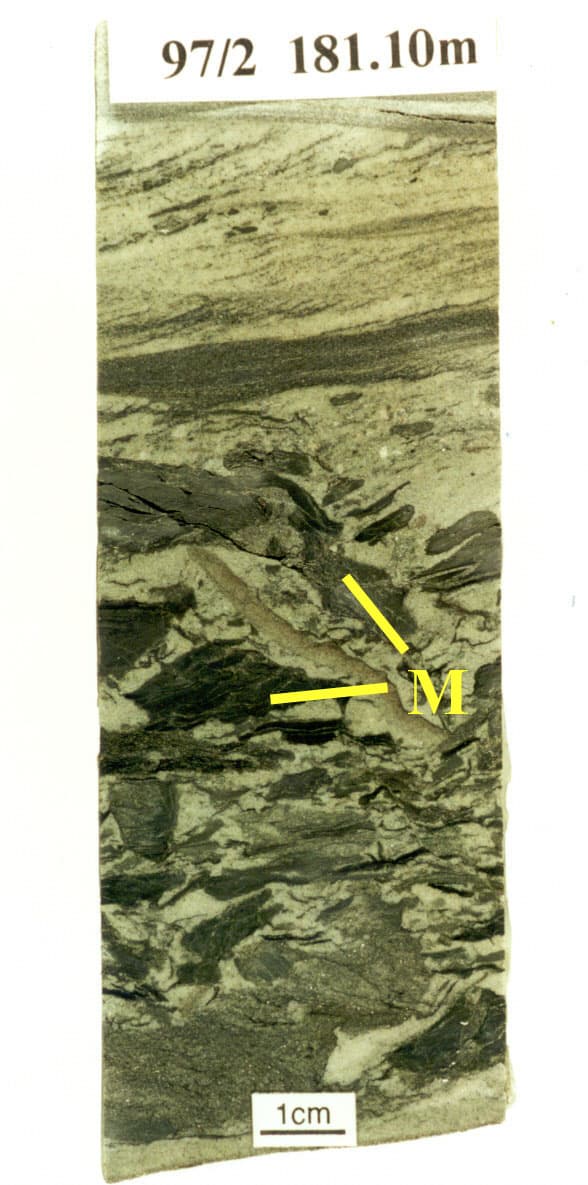

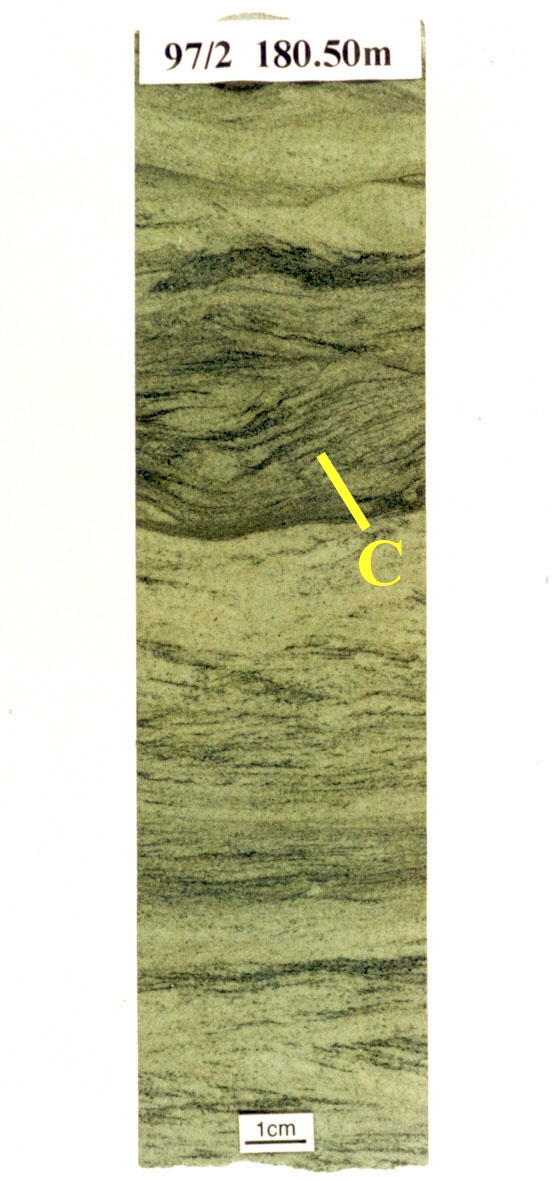

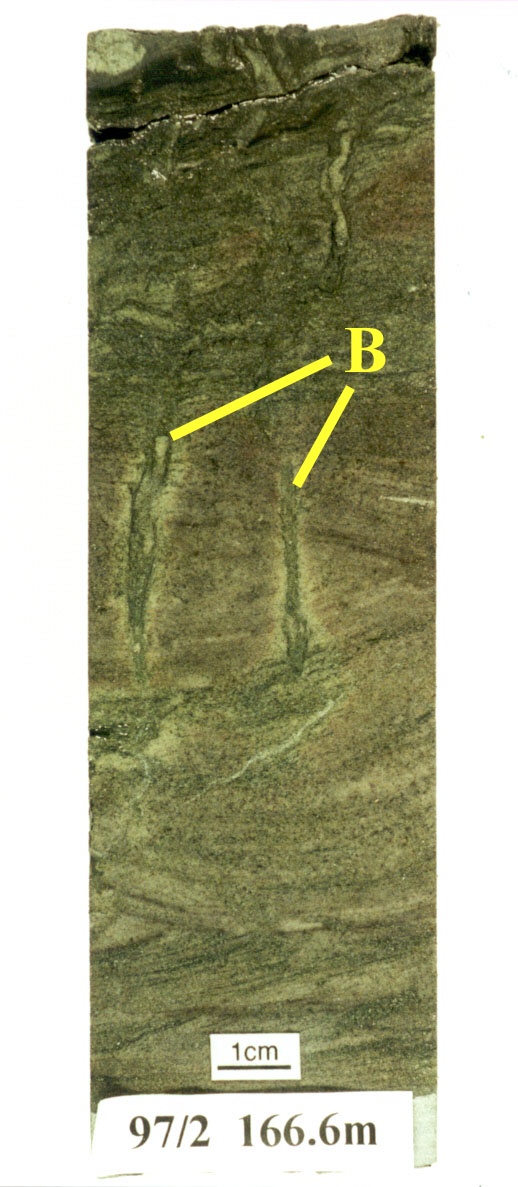

Typical features of the White Sandstones Unit in Borehole 97/2

The overall environment that seems to be represented by this unit is one dominated by shallow fluvial channels of a river system flowing towards the northeast along the axis of the basin. The occasional shale horizons may in part represent poorly preserved overbank and floodplain deposits.

The lateral change from the more stacked, well-bedded sand-rich lithofacies at Quarry Hill to the dominantly thinly bedded sands and minor shales in the area northwest of Rhynie village suggests the presence of larger-scale fluvial channels in the Quarry Hill area.

The Rhynie cherts occur within the Dryden Flags Formation which forms the upper part of the of the sequence of the basin fill. It is a sequence of thinly bedded micaceous sandstones (traditionally termed 'flags') and shales, that were previously recognised as the Dryden Flags and Shales and in part may represent a lateral equivalent to the Quarry Hill Sandstone Formation (see Rice et al. (2002) for details of the stratigraphy described below).

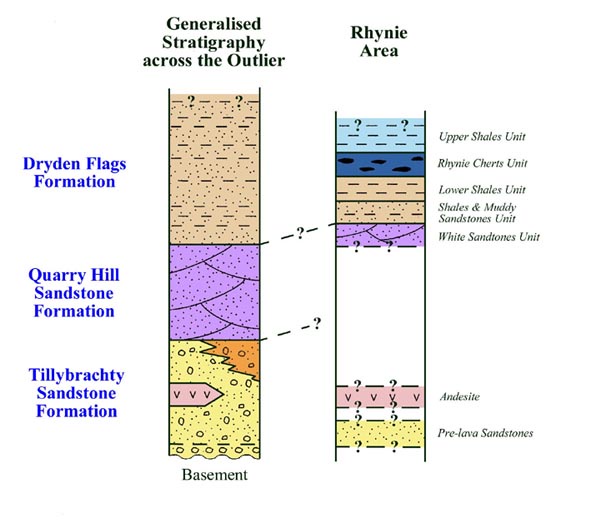

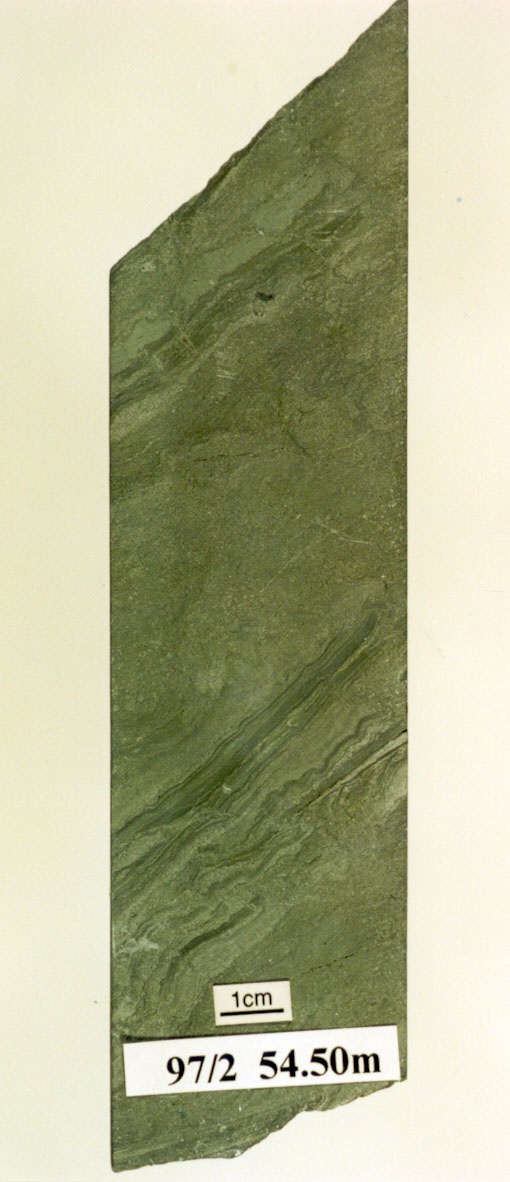

The succession of the Dryden Flags Formation in the Rhynie area, following the drilling programmes by the University of Aberdeen and recent studies, can now be divided lithologically into four discrete units. The lowest unit, informally termed the "Shales and Muddy Sandstones Unit" grades up from the "White Sandstones Unit" below and comprises primarily thickly bedded (up to 1m thick), erosively based massive muddy sandstones interbedded with thin shales and siltstones which show abundant soft-sediment deformation features. This unit passes upwards into a thick sequence of dark shales with thin fluidised and disrupted sand and silt laminae, informally termed the "Lower Shales Unit" (see inset below left).

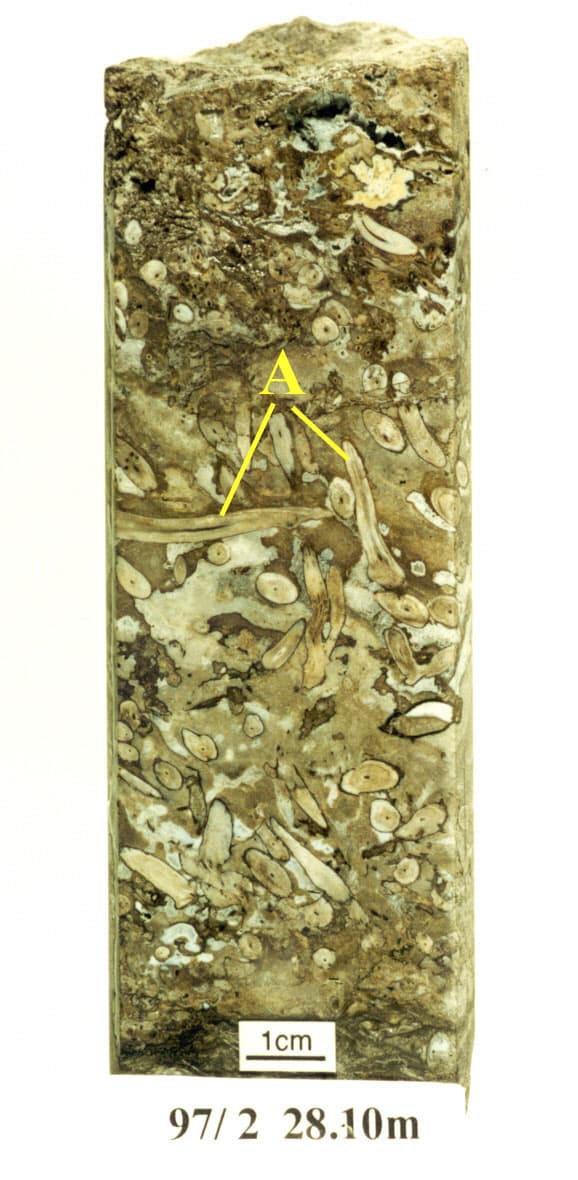

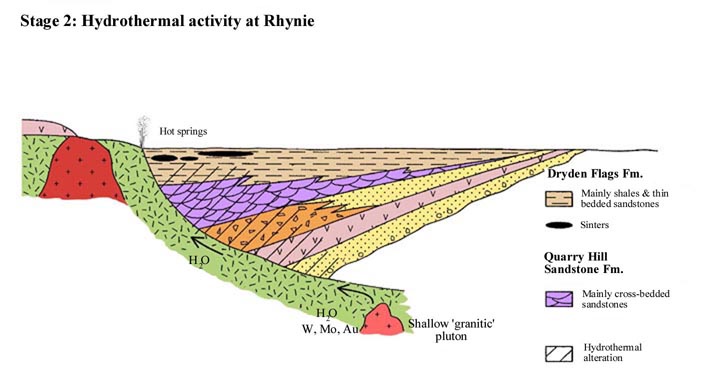

Above the shales lies the chert-bearing part of the sequence, informally termed the "Rhynie Chert Unit". Comparing borehole and trench data the chert beds (see inset above right) are laterally impersistant ( Trewin & Wilson 2004 ). One borehole (19c) studied by Clare Powell exhibited 53 individual chert beds over a depth interval of 26m, many of which are plant-bearing ( Powell et al. 2000b ) ( for a more detailed review of the chert morphologies and textures see the following section on Chert Textures ). The chert horizons are variably interbedded with silicified compacted sandstones with organostylolites, together with thin shales and siltstones similar in lithology to the units below and above. By comparing the biota content and textures of the discontinuous plant-bearing chert beds of the Rhynie Chert Unit with Recent plant-bearing sinters and modern hot spring environments at Yellowstone National Park, USA, Trewin and Wilson (2004) suggest that much of the Rhynie chert succession represents sinter deposition on the distal, cooler reaches of a hot spring outwash apron.

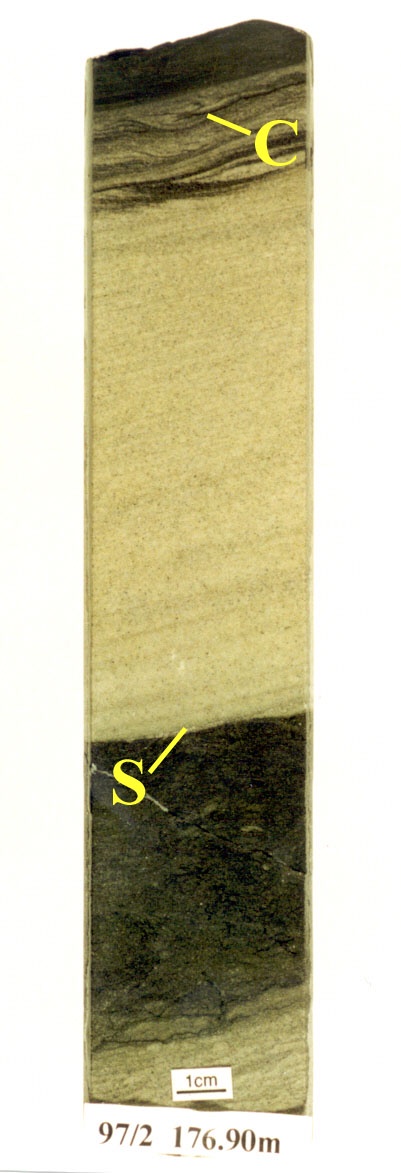

The uppermost lithological unit in the Dryden Flags Formation is informally termed the "Upper Shales Unit" and is at least 13m thick. It comprises primarily green-coloured laminated shales (locally exhibiting desiccation cracks) variably interbedded with impersistant thin sandstone beds that often display sharp to erosive bases, mud rip-up clasts, current ripple laminae and graded bedding . Patchy calcite cementation is present in the sandstones. Similar lithologies host the Windyfield chert, some 700 m to the northeast of the Rhynie chert locality, and therefore it has been suggested the Windyfield chert probably occurs within this younger unit ( Rice et al. 2002; Rice & Ashcroft in press ).

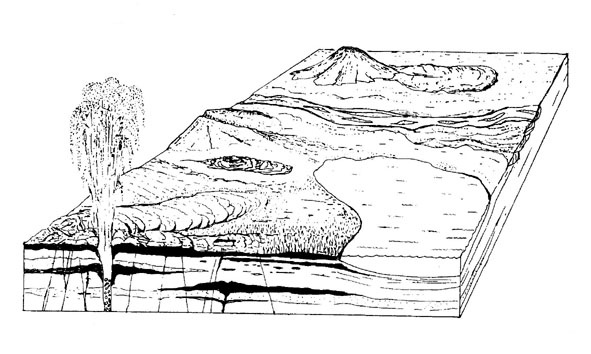

The overall environment represented by the rocks of the Dryden Flags Formation appears to be an alluvial plain setting with mainly overbank deposition on floodplains and in ephemeral lakes with occasional sheet-flood events. The cherts and their interbedded sediments representing localised deposition of subaerial and subaqueous sinters from hot spring and geyser activity and the accumulation of soils on floodplains (see inset below).
